KeyWiz Wiring Diagrams
Image of example1.jpg
The simple method (switches on the left) uses the basic "common ground" wiring scheme common to all direct connection encoders.  This is the one most of our customers will use.

The Advanced Method (switches on the right) are an optional way to add buttons for Administrative or other "non-gameplay" functions.  The addition of the switching diodes in the Advanced Method allows you to set up buttons that will send a Shazaaam! key definition with only a single button press!

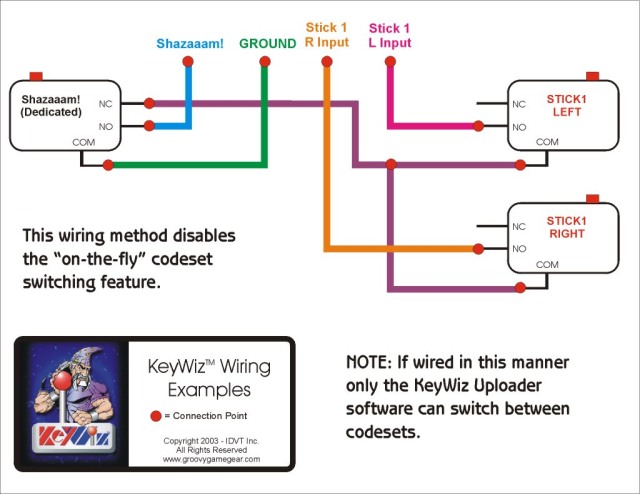

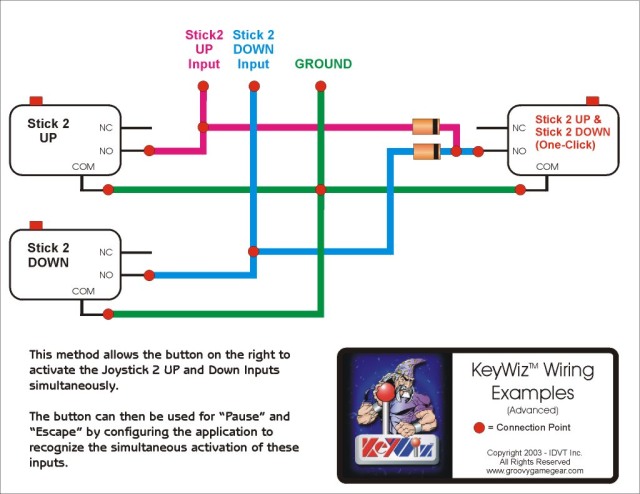

The diagrams below are the most advanced methods of wiring for special purpose installations.  Their function is stated on the diagrams.  Most will never need these, but they show just how versatile the KeyWiz hardware is.


Image of example2.jpg
Image of example3.jpg
