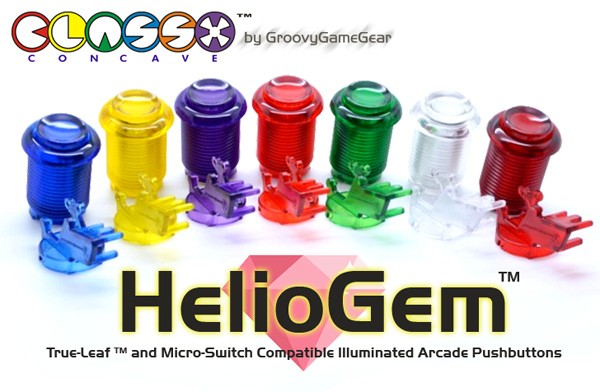

Another amazing GroovyGameGear.com exclusive! The HelioGem™ Pushbutton is another Premium entry in our revolutionary, new CLASSX™ pushbutton line, offering features never before seen on other arcade pushbuttons.
Now being offered with our new higher-output Helio9™ RGB Lighting unit! Why RGB you say? Because even though these buttons light up vividly in their native color, some offer an impressive range of other colors when illuminated with other colored lighting. If you have a lighting controller like the LED-Wiz, you can expect a range of compatible colors from just two of the LED elements, which allows for nice color-changing effects while using fewer outputs. But for specifically the Clear, Yellow and surprisingly the Purple buttons, you'll probably want to use full RGB, as these have a wider range of colors which can be displayed!
Notes for best utilization of lighting and LED-Wiz outputs:
Clear: Outputs - 3, Full spectrum of colors possible from the Helio9 lighting unit, including white, but less vibrant colors at lower intensities.
Purple: Outputs - 3, Great color selection. Dark when unlit. Somwhat subdued but very vibrant colors. Excellent Pink to dark violet colors.
Yellow: Outputs - 2, Good color selection. Bright reds, oranges and lime greens. Weak blues so best left unconnected.
Orange - Outputs 2, Darker Orange to Red. Start with G and B sharing a single output and at full intensity. Increase R intensity until desired shade is reached.
Red - Outputs 1, Red only. Very rich red color, vitually unaffected by other colors.
Standard CLASSX™ Pushbutton features are:
- Smooth, Precise Operation - No gaps between the plunger and the switch actuator provides fast, positive action.
- Unique 2-piece design - Universal switch holder accepts Standard Micros, Micro-Leaf-style and even True Leaf switches!
- Twist and Click switch assembly attachment allows for simpler installations. Wire switches outside the panel and simply snap them into place.
- Improved Fingertip Retention - The CLASSX™ CONCAVE pushbutton strikes a perfect compromise between the early leaf buttons and the modern, flatter style.
- Better Light Distribution - Redesigned plunger geometry allows more light to reach the bezel for better overall illumination and we also include our proprietary diffuser element.
- Extra long body for easy mounting into thick panels.
- Special mounting accommodations for RGB-Drive™ LED assemblies. If the Helio9™ RGB Lighting option is selected, they will come pre-modified, if required based on the switch option chosen.
- Improved Appearance - The CLASSX™ pushbutton sits slightly higher and sports a more rounded bezel to enhance the overall control panel appearance.
- Super Durable Materials - With basic care, the CLASSX™ pushbutton is designed to last a lifetime.
- Includes Premium Pushbutton Nut.
HelioGem™ pushbuttons are our own custom design and are not simply based on an existing manufacturers design using a different color. They have been custom made to our specifications and were designed to look and play great on your panel. Our Helio9™ High-Output RGB pushbutton lighting module (included) puts the power of 9 LEDs at your disposal, for intense button lighting even in well lit environments. It includes full 24" long, Color-Coded wires which greatly simplify connections to controllers by not requiring intermediate wiring.
These buttons are made from the same rich colors as those used in pinball playfields and are unlike any you have seen. As such, some colors will appear darker when not illuminated, but for that, the color will be extremely vibrant when lit.
- No light wasted on the ceiling or shining in your eyes
- No special rings or other LED mounting gizmos required.
- A great accessory for use with the LED-Wiz™ Lighting Controller
Switch Options for all CLASSX pushbuttons (Electric ICE 2 buttons shown only for reference)
Standard Soft-Touch™: A smooth, quiet and low force microswitch. A great choice for the budget minded.
Micro-Leaf™ Style (Optional): Simply the lightest feel available. Virtually disappears under the pushbutton. Click the name for more info. (Currently out of stock..option will be added when more are available)
True-Leaf Pro™ (Optional): A high quality leaf-switch with gold contacts and stacked body! True arcade quality and durability, and the best option for the arcade purist. Can be adjusted for hair-trigger response with amazing rapid fire capability.
Helio9™ Wire Color Codes:
White---+5vDC Common Anode
Red -----Red Cathode (Ground)
Green --Green Cathode (Ground)
Blue ----Blue Cathode (Ground)
This product was added to our catalog on Tuesday 14 March, 2023.
